Pin & Chain Post Steering Attachment

Wanting to ditch the Post cap? Meet the Pin & Chain Post Steering System.

If you've been or seen rural fencing in the South Island, you might have seen the Pin & Chain post steering system in action. It's been a contractor favourite for years for one simple reason: it gives you control over your post steering without the need of a post rammer postcap.

Although a post cap works well for the majority of post drivers and fencing requirements, some guys find the post cap not very effective in harder ground conditions as the post can go off-line/wonky when you lift the post cap off the post (once rammed into the ground). With the FencePro Pin & Chain system, it takes a little bit longer to get used to, but you can see exactly what your post is doing as you ram it.

Pin & Chain Post Steering System | Product Overview

In this product overview video, Tobi from FencePro goes over the key features and benefits of the Pin & Chain Post Steering Kit System.

Get pricing or request more information.
Talk to one of our team about the right FencePro post driver setup for your fencing operation — built tough, reliable, and ready to work.
Talk to our team

Pin & Chain System | In Action

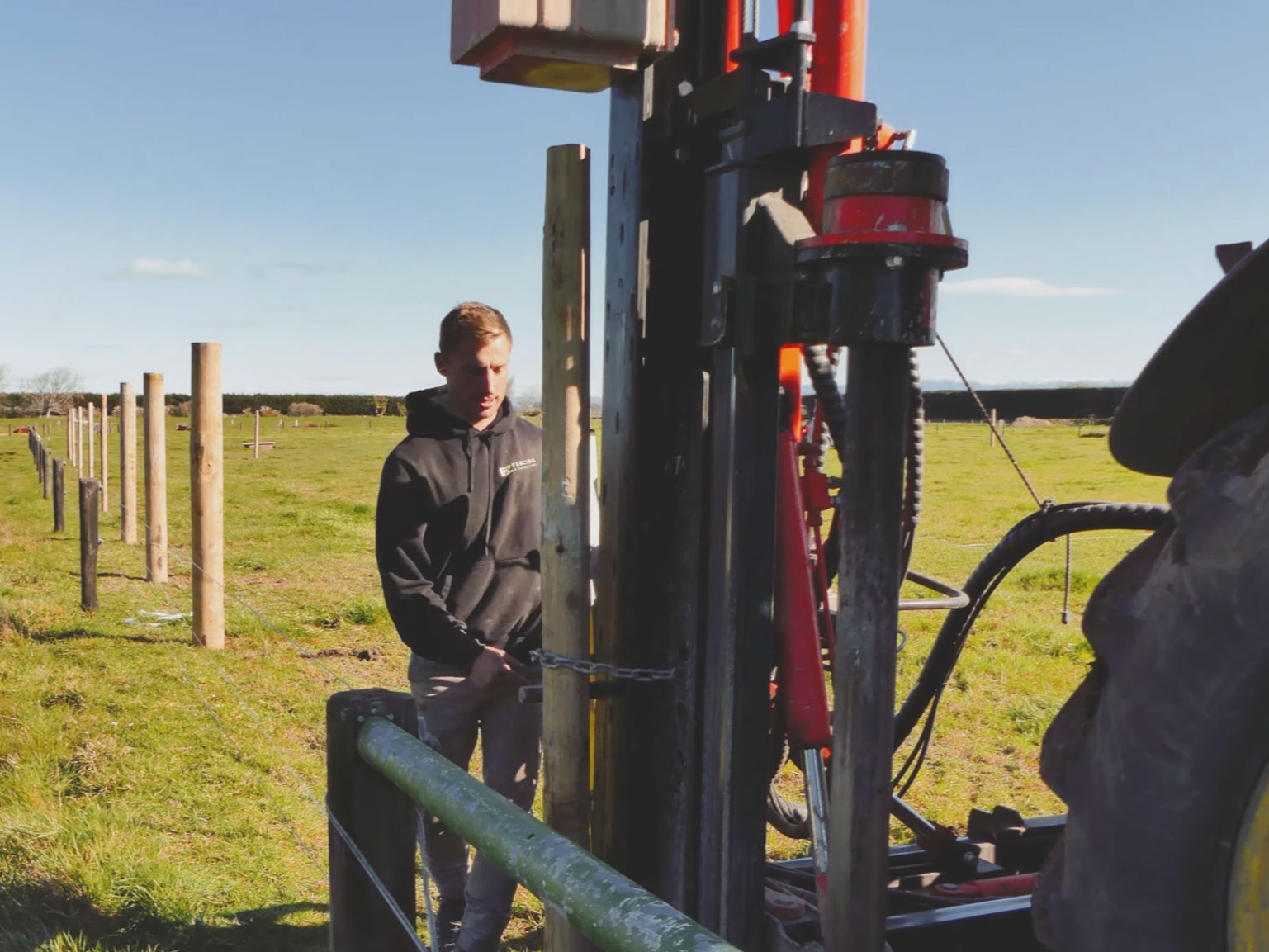

A South Island fencing contractor using the pin & chain to hold a post firmly against the FencePro Ultra G4 hydraulic post driver mast.

Pin & Chain Post Steering System with roller bar kit in action — holding a post firmly against the FencePro Ultra G4 hydraulic post driver mast. The roller bar keeps the chain running smooth and free from binding.

An Otago fencing contractor using the UltraGlide Rock Spike Extractor with the pin & chain profile keeping the rock spike straight to the post driver mast for a straight pilot hole.

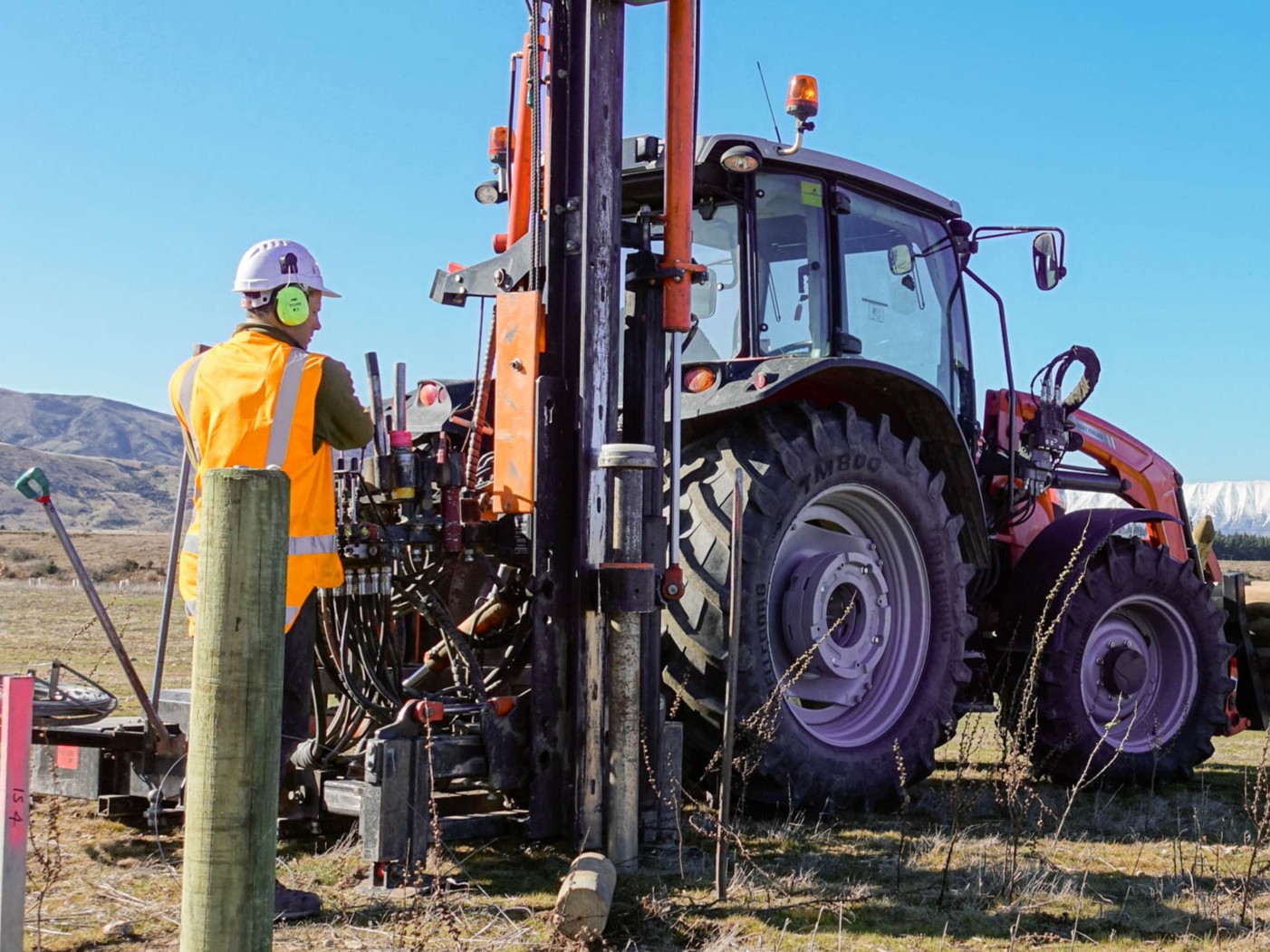

FencePro Pin & Chain Post Steering System fitted to the FencePro Ultra G2S hydraulic post driver — a contractor-proven post steering attachment for precise alignment and control.

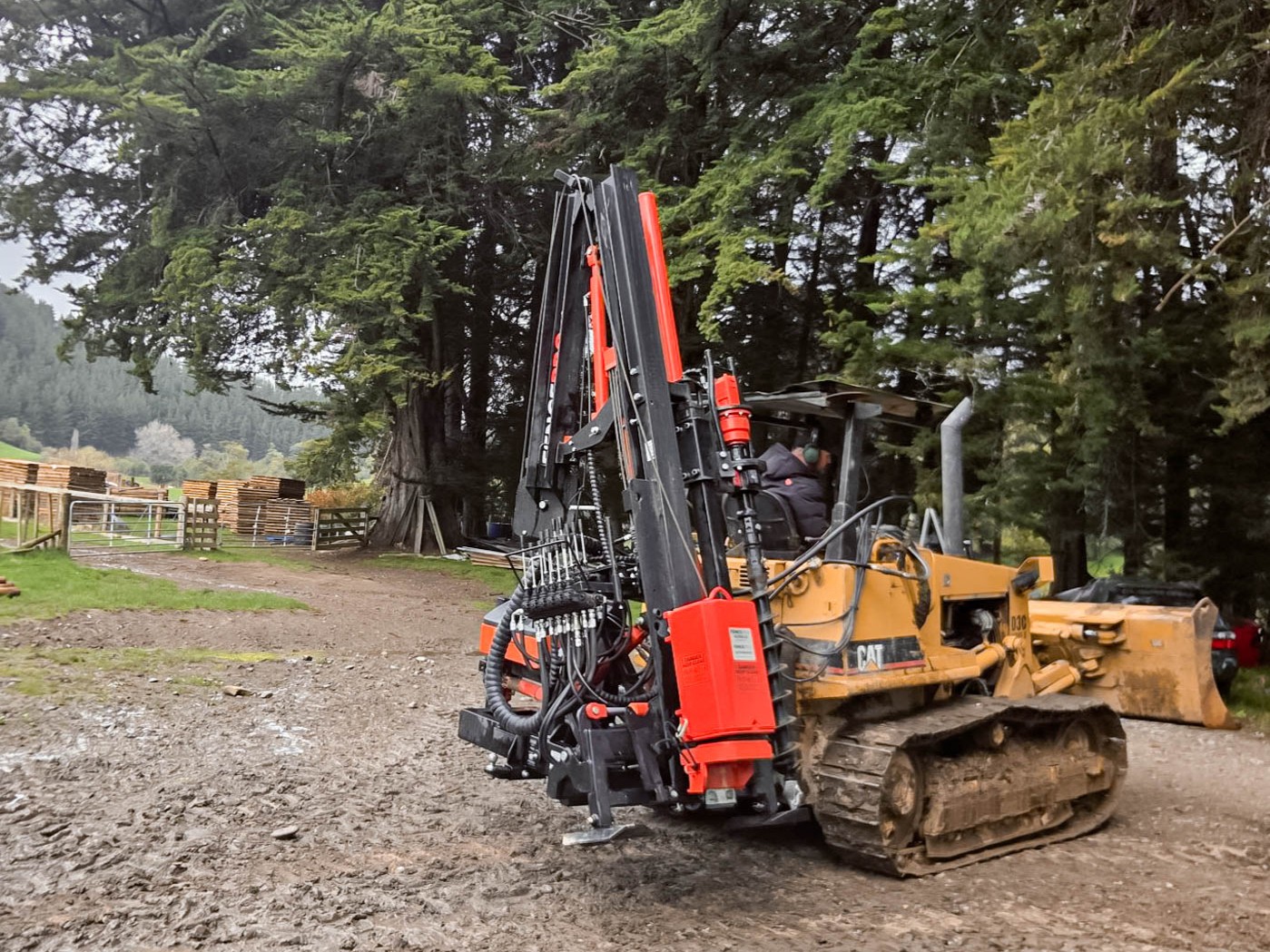

encePro Pin & Chain Post Steering System fitted to a bulldozer-mounted FencePro Ultra G2S hydraulic post driver — a North Island contractor running both the pin & chain system and postcap together

encePro Pin & Chain Post Steering System fitted to a bulldozer-mounted FencePro Ultra G2S hydraulic post driver. This North Island fencing contractors machine fitted with both the pin & chain system and postcap.

How it Works | Pin & Chain System

This contractor-proven post steering kit is designed to hold your post or strainer against the mast.

The system uses a heavy-duty chain that wraps around the post, securing it firmly to the post driver mast. The pin then slides into the profile on either side of the post. If your post starts to wander or needs a nudge, you use the pin to push or pull it back into line.

2 Pin Height options: Two different height options for the pin to suit different post sizes and ground conditions.
Triple-Height Chain Adjustment: Three chain heights to ensure you can grip the post exactly where you need to.

Innovative Roller Bar: We've engineered a roller system that prevents the chains from binding up on the post.

FencePro Pin & Chain Post Steering System — chain wrapped firmly around the post with the steering pin engaged against it. A contractor-proven alternative to the postcap for precise post alignment on your hydraulic post driver.

Pin & Chain Post Steering System with Ultra Glide Rock Spike Guide — the RSE traveller sliding down the profile, keeping the rock spike aligned with the mast for a straight pilot hole every time.

Pin & Chain Post Steering System shown with a postcap — showing you can to run both together on your hydraulic post driver for better post control.

Pin & Chain Post Steering System — the steering pin pushing the post back into alignment. A simple, effective way to keep your post straight as you ram it with your hydraulic post driver.

Pin & Chain Post Steering System with Rock Spike Guide — showing the RSE traveller and the Pin & Chain profile it slides down, keeping your rock spike aligned with the mast for a straighter pilot hole.

Straighter Pilot holes when paired with the UltraGlide Rockspike extractor kit.

When you pair the Pin & Chain system with an Ultra Glide Rock Spike Extractor (RSE), the RSE traveller (the part that slides up and down) is designed to slide directly over the Pin & Chain profile. This locks the rockspike (or rockdrill/auger) in line and stops it from pulling away from the mast, giving you a straighter pilot hole.

This post driver attachment is built for our heavier-duty post rammer models. It's fully compatible with the Ultra G2S, Ultra V, Ultra G4 and Ultra T2.

The FencePro Post Roller Bar Kit is a huseful upgrade for your Pin & Chain System that replaces a standard chain. The twin roller and bar design prevents the chain from binding or catching on the post as you ram it into the ground

Want to Retrofit? We do offer a smaller, weld-on retrofit version for other machines; it only features a single pin height and isn't as strong as a factory-fitted / the actual pin & chain system, and doesn’t help guide your rock spike, but is a handy retrofittable upgrade.
